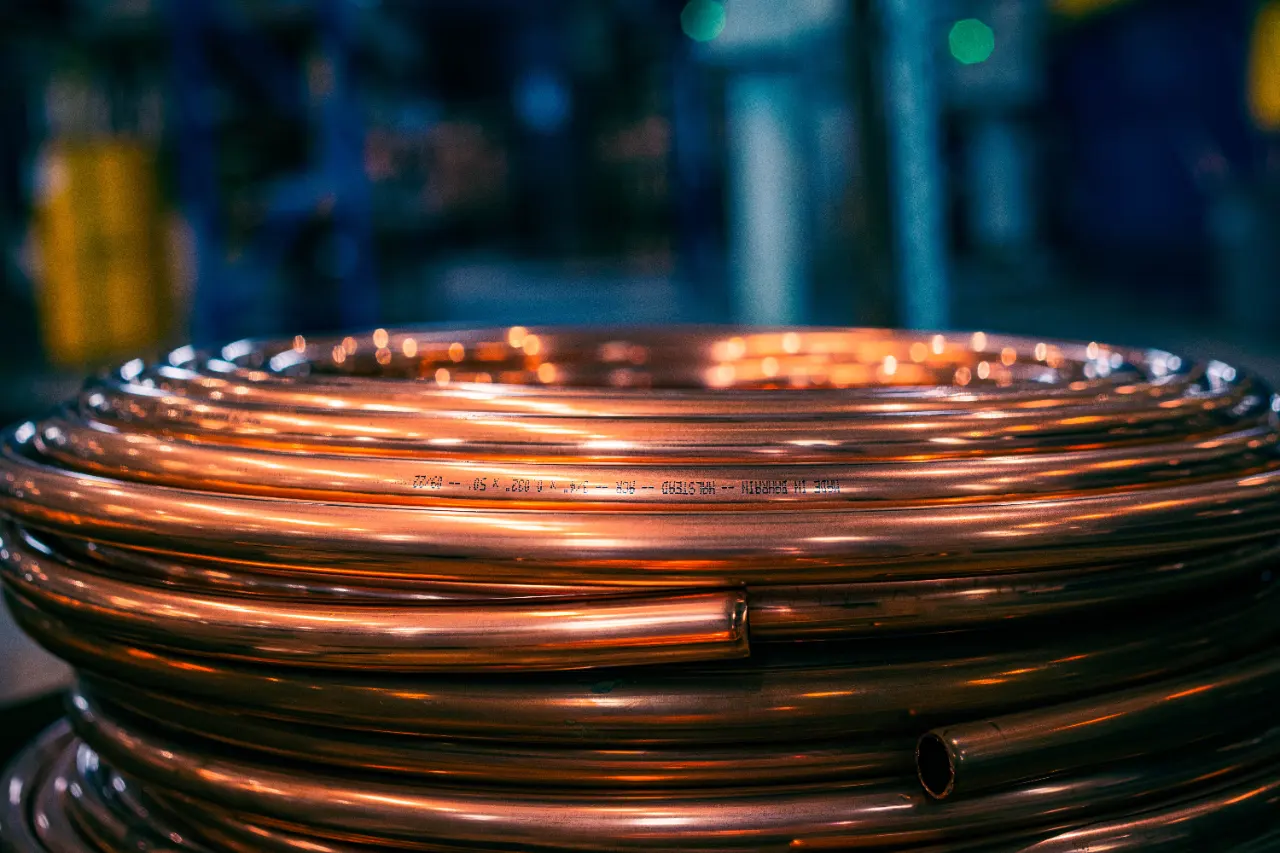

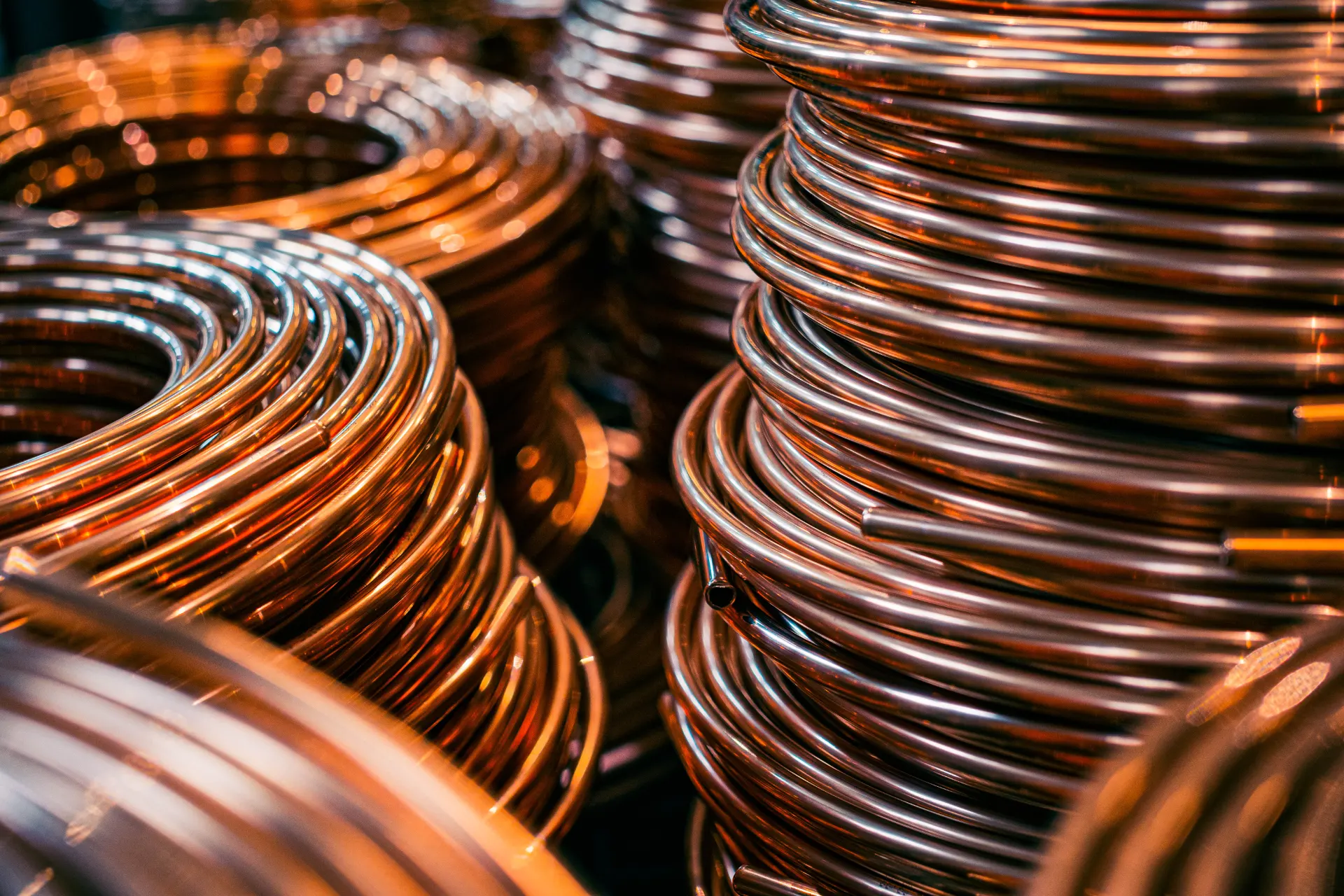

Halstead® Refrigeration Service Coils made to Global Standards, Sealed for Cleanliness & Protection
Halstead® Refrigeration Service Coils made to Global
Standards, Sealed for Cleanliness & Protection
The leading premium copper tube manufacturer in the MENA region.
Product Specification Table
The outer diameter and wall thickness is manufactured in accordance with ASTM B743
| Type | Size (OD) Inch mm | Wall thickness Inch mm | 50ft/15.24m Coils lbs Kg Box Qty | 100ft/30.48m Coils lbs Kg Box Qty | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
Soft Coil ASTM B743 | ||||||||||
| 1/4” | 6.35 | 0.024” | 0.610 | 3.31 | 1.50 | 10 | 6.62 | 3.00 | 5 | |
| 3/8” | 9.52 | 0.024” | 0.610 | 5.14 | 2.33 | 10 | 10.28 | 4.66 | 5 | |
| 1/2” | 12.70 | 0.028” | 0.711 | 8.07 | 3.66 | 5 | 16.14 | 7.32 | 3 | |
| 5/8” | 15.88 | 0.028” | 0.711 | 10.21 | 4.63 | 4 | 20.42 | 9.26 | 2 | |
| 3/4” | 19.05 | 0.032” | 0.813 | 14.02 | 6.36 | 3 | 28.04 | 12.72 | 2 | |
| 7/8” | 22.22 | 0.040” | 1.020 | 20.38 | 9.24 | 3 | 40.76 | 18.48 | 2 | |
Product Specification Table
The outer diameter and wall thickness is manufactured in accordance with ASTM B280
| Type | Size (OD) Inch mm | Wall thickness Inch mm | 50ft/15.24m Coils lbs Kg Box Qty | 100ft/30.48m Coils lbs Kg Box Qty | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
Soft Coil ASTM B280 | ||||||||||
| 1/4” | 6.35 | 0.030” | 0.762 | 4.03 | 1.83 | 10 | 8.06 | 3.66 | 5 | |
| 3/8” | 9.52 | 0.032” | 0.813 | 6.69 | 3.03 | 10 | 13.37 | 6.07 | 5 | |
| 1/2” | 12.70 | 0.032” | 0.813 | 9.11 | 4.13 | 5 | 18.21 | 8.26 | 3 | |
| 5/8” | 15.88 | 0.035” | 0.889 | 12.53 | 5.68 | 4 | 25.06 | 11.37 | 2 | |
| 3/4” | 19.05 | 0.035” | 0.889 | 15.25 | 6.92 | 3 | 30.51 | 13.84 | 2 | |
| 7/8” | 22.22 | 0.045” | 1.143 | 22.75 | 10.32 | 3 | 45.49 | 20.63 | 2 | |
Underwriter's Laboratories (UL) Recognition
Modern HVAC/R designs and VRF systems operate with higher refrigerant pressures due to the use of next generation refrigerants (such as R-410A, R-32 or low-GWP alternatives) and tighter efficiency standards. To provide customers the highest level of assurance MME has implemented a third-party verification/recognition through Underwriters Laboratories (UL).
This performance minimizes the risk of coil failure, helps maintain system reliability, and ensures compliance with evolving building codes and environmental regulations, making Halstead® Refrigeration Service Coils a future-ready choice for any high-performance refrigeration or air conditioning design.
By meeting and exceeding UL safety and performance criteria, Halstead® Refrigeration Service Coils provide engineers, OEMs, and installers with confidence that these components will deliver long-term durability, safety, and efficiency even under rigorous operating conditions. The testing and third-party UL recognition validates performance of this product to R410A internal operating pressures of 700psi at 250°F, as per the included tables:
ASTM B743
| Size O.D.(”) WALL(”) | Rated Internal Working Pressure (PSIG) 150°F 200°F 350°F 400°F | ||||
|---|---|---|---|---|---|
| 1/4” | 0.024” | 1,061 | 1,020 | 832 | 624 |
| 3/8” | 0.024” | 700* | 700* | 540 | 405 |
| 1/2” | 0.028” | 700* | 700* | 468 | 351 |
| 5/8” | 0.028” | 700* | 700* | 371 | 278 |
| 3/4” | 0.032” | 700* | 700* | 352 | 264 |
| 7/8” | 0.040” | 700* | 700* | 380 | 285 |
* UL Recognized to 700 PSI (select sizes)
ASTM B280
| Size O.D.(”) WALL(”) | Rated Internal Working Pressure (PSIG) 150°F 200°F 350°F 400°F | ||||
|---|---|---|---|---|---|
| 1/4” | 0.030” | 1,195 | 1,148 | 938 | 703 |
| 3/8” | 0.032” | 836 | 803 | 656 | 492 |
| 1/2” | 0.032” | 700* | 700* | 485 | 363 |
| 5/8” | 0.035” | 700* | 700* | 412 | 309 |
| 3/4” | 0.035” | 700* | 700* | 341 | 256 |
| 7/8” | 0.045” | 700* | 700* | 388 | 291 |
* UL Recognized to 700 PSI (select sizes)
Highlights

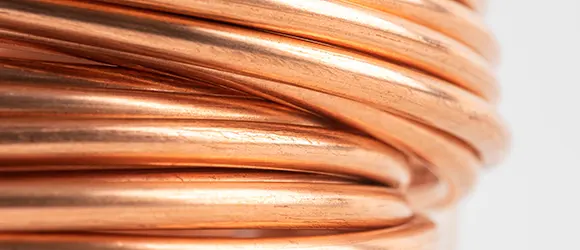

+ HIGHEST PURITY COPPER

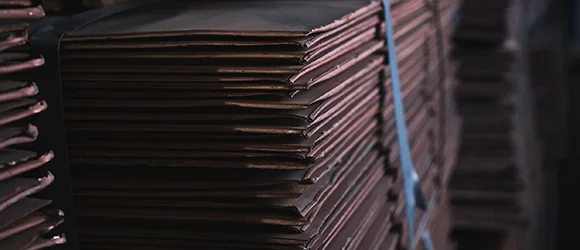

Produced in compliance with ASTM phosphorus deoxidized DHP UNS C12200 grade of copper (Cu > 99.9%, P0.015%-0.040%).
+ SUPER CLEAN COILS

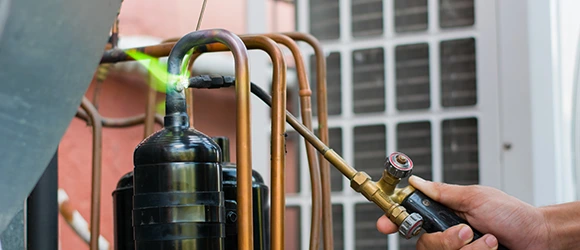

Each coil is vacuumed and purged with nitrogen to obtain internal residue less than 0.0035 g/ft (as per the specified cleanness limit set by ASTM B280 & ASTM B743) to provide maximum protection against harmful oxides during soldering/brazing.
+ OPTIMIZED FOR THE JOB SITE
✓ Suitable for Variable Refrigeration Flow (VRF) Systems and modern refrigerants, including R410A, R407C, R134A, R32
✓ UL recognized to 700psi at 250 degrees Fahrenheit (in select sizes)
✓ Annealed to ensure easy field installation and tested for:
- Elongation greater than >40%
- Flaring expansion greater than >40% of the outer diameter
- Tensile strength greater than >205 MPa
+ RIGID AND SPACE EFFICIENT
✓ Each coil is labeled with durable ink and a unique barcode for easy identification and traceability

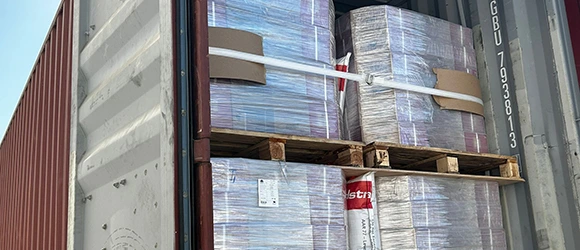

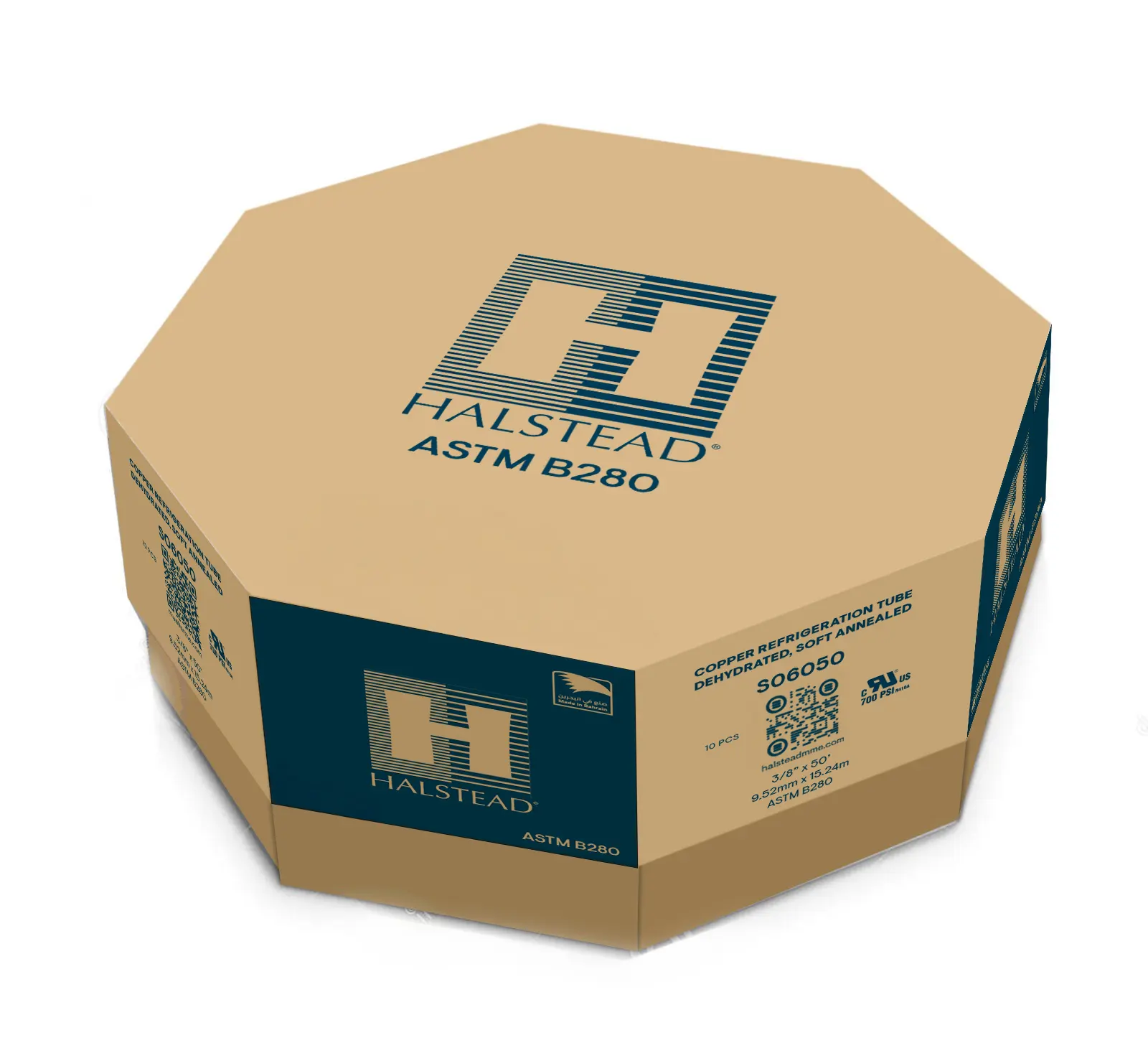

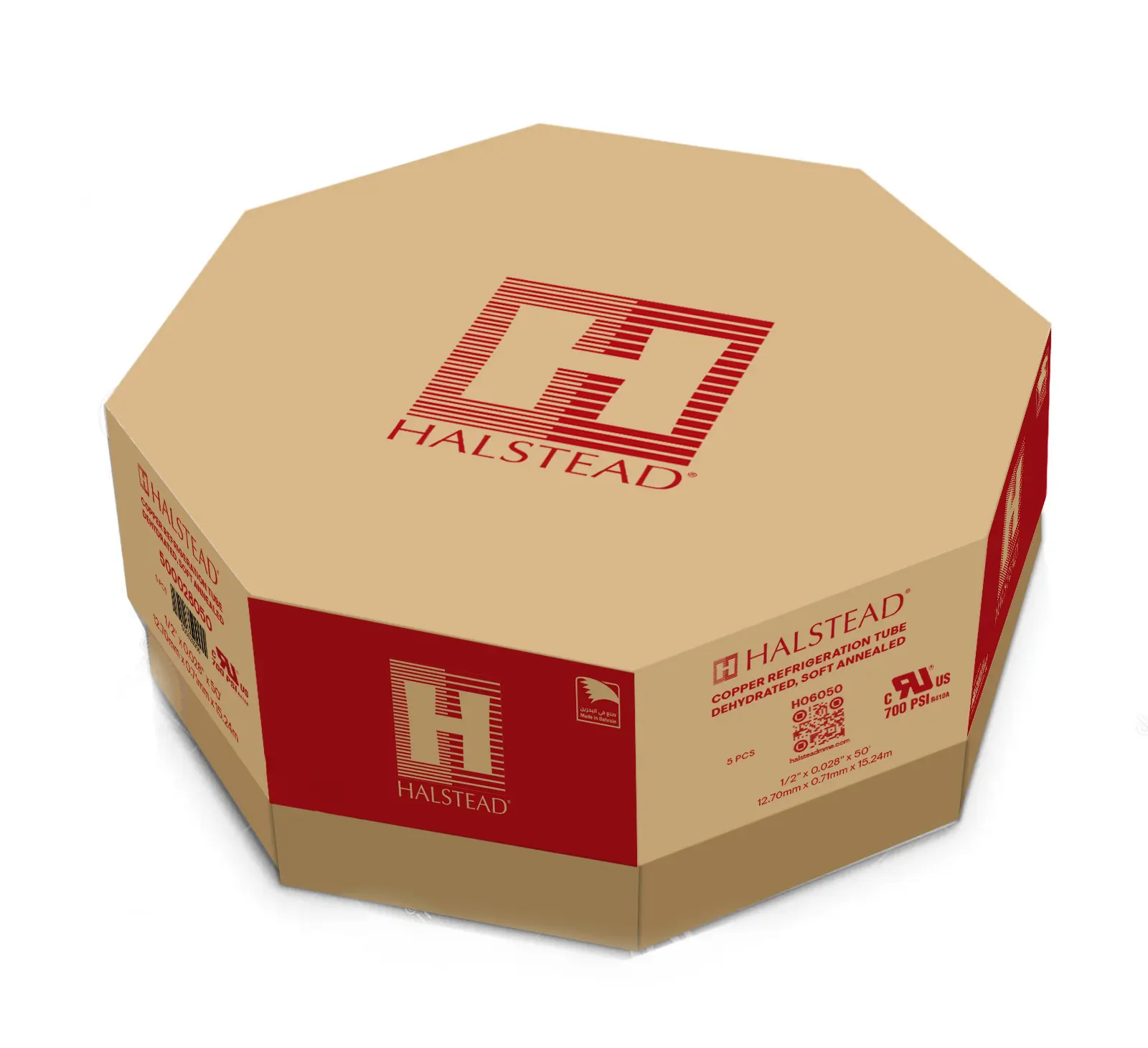

✓ Unique rigid box design:
- Stackable 20-box high
- 15% more space efficient
- 360° identification
All our products comply with the following international standards:
