Halstead® ACR/Nitrogenized Straight Lengths, Engineered for High Performance
Halstead® ACR/Nitrogenized Straight
Lengths, Engineered for High Performance
The leading premium copper tube manufacturer in the MENA region.

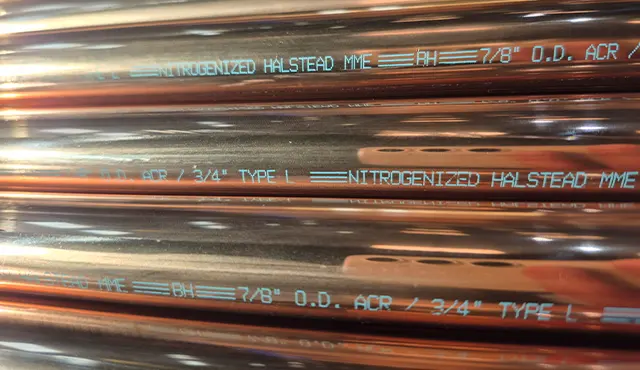

Product Specification Table
| O.D. (”) | WALL (”) | 6.09m Lengths*Weight / Length (Kg) | Tube MarkingPrinting | Ship InfoQty / Bundle (pcs) |
|---|---|---|---|---|
| 1/4” | 0.024” | 0.51 | Yes | 25 |
| 3/8” | 0.024” | 0.93 | Yes | 25 |
| 1/2” | 0.028” | 1.26 | Yes | 25 |
| 5/8” | 0.028” | 1.85 | Yes | 25 |
| 3/4” | 0.032” | 2.24 | Yes | 10 |
| 7/8” | 0.040” | 2.99 | Yes | 10 |
| 1 1/8” | 0.036” | 4.34 | Yes | 5 |
| 1 3/8” | 0.040” | 5.91 | Yes | 5 |
| 1 5/8” | 0.048” | 8.38 | Yes | 5 |
* Customized lengths available upon request
Product Specification Table
| O.D. (”) | WALL (”) | 6.09m Lengths*Weight / Length (Kg) | Tube MarkingIncise & Printing | Ship InfoQty / Bundle (pcs) |
|---|---|---|---|---|
| 1/4” | 0.025” | 0.62 | Yes | 25 |
| 3/8” | 0.030” | 1.14 | Yes | 25 |
| 1/2” | 0.035” | 1.80 | Yes | 25 |
| 5/8” | 0.040” | 2.58 | Yes | 25 |
| 3/4” | 0.042” | 3.29 | Yes | 10 |
| 7/8” | 0.045” | 4.13 | Yes | 10 |
| 1 1/8” | 0.050” | 5.94 | Yes | 5 |
| 1 3/8” | 0.055” | 8.05 | Yes | 5 |
| 1 5/8” | 0.060” | 10.36 | Yes | 5 |
* Customized lengths available upon request
Key Specifications & Approvals
Standard: Conforms to ASTM B280 & ASTM B75
✓ Copper Alloy: UNS C12200
✓ Temper: H58 (Hard Drawn)
✓ Key Approval: UL recognized to 700 PSI for select sizes

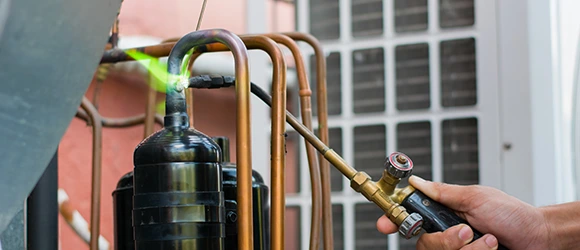

HVACR Application
This tube is specifically designed for use in heating, ventilation, air conditioning, and refrigeration (HVACR) applications, including high-pressure systems.
Ideal For
✓ Variable Refrigerant Flow Systems (VRF)
✓ DX cooling and heat pump system
✓ Commercial refrigeration circuits
✓ High-pressure refrigerant systems (including low-GWP alternatives)
✓ OEM evaporator and condenser coils
✓ Cold-room and supermarket refrigeration piping networks
ACR ECO
| Size O.D.(”) | Annealed ConditionRated Internal Working Pressure (PSIG) 150°F 200°F 300°F 400°F | Hard Drawn ConditionRated Internal Working Pressure (PSIG) 150°F 200°F 300°F 400°F | ||||||
|---|---|---|---|---|---|---|---|---|
| 1/4” | 1,052 | 990 | 969 | 619 | 1,888 | 1,888 | 1,833 | 1,723 |
| 3/8” | 700* | 700* | 631 | 402 | 1,233 | 1,233 | 1,197 | 1,125 |
| 1/2” | 700* | 700* | 549 | 350 | 1,089 | 1,089 | 1,057 | 994 |
| 5/8” | 700* | 700* | 435 | 278 | 864 | 864 | 839 | 789 |
| 3/4” | 700* | 700* | 414 | 264 | 831 | 831 | 806 | 758 |
| 7/8” | 700* | 700* | 445 | 284 | 807 | 807 | 784 | 737 |
| 1 1/8” | 334 | 314 | 308 | 197 | 604 | 604 | 587 | 551 |
| 1 3/8” | 303 | 285 | 279 | 178 | 560 | 560 | 544 | 511 |
| 1 5/8” | 308 | 290 | 284 | 181 | 576 | 576 | 559 | 526 |
* UL recognition to withstand the internal operating pressures of R410A up to 700psi at 250°F
ASTM B280
| Size O.D.(”) | Annealed ConditionRated Internal Working Pressure (PSIG) 150°F 200°F 300°F 400°F | Hard Drawn ConditionRated Internal Working Pressure (PSIG) 150°F 200°F 300°F 400°F | ||||||
|---|---|---|---|---|---|---|---|---|
| 1/4” | 1,104 | 1,039 | 1,017 | 649 | 2,229 | 2,229 | 2,165 | 2,035 |
| 3/8” | 869 | 818 | 801 | 511 | 1,756 | 1,756 | 1,705 | 1,602 |
| 1/2” | 755 | 710 | 696 | 444 | 1,524 | 1,524 | 1,480 | 1,391 |
| 5/8” | 700* | 700* | 633 | 404 | 1,387 | 1,387 | 1,347 | 1,266 |
| 3/4” | 700* | 700* | 550 | 351 | 1,206 | 1,206 | 1,171 | 1,101 |
| 7/8” | 700* | 700* | 504 | 321 | 1,104 | 1,104 | 1,071 | 1,007 |
| 1 1/8” | 469 | 442 | 433 | 276 | 948 | 948 | 920 | 865 |
| 1 3/8” | 421 | 396 | 388 | 248 | 850 | 850 | 826 | 776 |
| 1 5/8” | 388 | 365 | 357 | 228 | 783 | 783 | 760 | 714 |
* UL recognition to withstand the internal operating pressures of R410A up to 700psi at 250°F
Technical Data
Values of allowable internal working pressure for copper tube in service are basedon the formula from ANSI B31, Standard Code for Pressure Piping:
P = Allowable Pressure
S = Allowable Stress
Tm = Min Wall Thickness
DMax = Max Outside Diameter
@150°F S = 10,300 PSIG annealed
@200°F S = 10,300 PSIG annealed
@300°F S = 10,000 PSIG annealed
@400°F S = 9,400 PSIG annealed
All ratings listed for Halstead® Type L/ACR Nitrogenized Straight Lengths in the preceding chart, are calculated for tube in the annealed/hard condition. These values should be used when soldering, brazing, or welding is employed for joining components in a system. In designing a system, careful consideration should also be given to joint ratings, as well as those of the components
Highlights
+ HIGHEST PURITY COPPER
AND QUALITY ASSURANCE
✓ Premium C12200 DHP copper (Cu>99.9%)
✓ Rigorously tested to meet chemical, mechanical, and eddy current standards
✓ Engineered for high performance and durability in demanding conditions

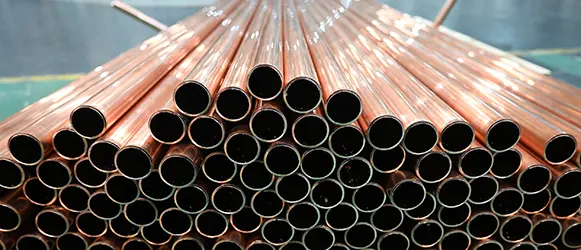

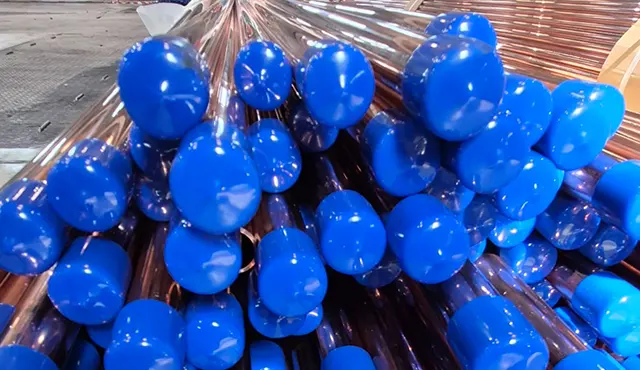

+ INTERNAL NITROGEN CHARGE
✓ Each tube is charged with high-purity nitrogen
✓ Internal atmosphere eliminates the presence of oxygen during brazing and prevents the formation of copper oxides/carbonaceous scales on the ID surface
✓ Improves system cleanliness and mitigates restrictions on all components
+ OPTIMIZED FOR THE JOB SITE
✓ High tensile and burst strength allow for safe operation under elevated working pressures
✓ UL recognition of 700 psi at 250° F, compliant with modern refrigerants with higher design pressures
✓ Non-porous, homogeneous copper microstructure ensures long-term corrosion resistance
+ PROVEN DURABILITY AND
DIMENSIONAL ACCURACY
✓ Tight OD/ID, and wall thickness tolerances
✓ Enhanced refrigeration flow uniformity and reduced pressure drop across long pipe runs
✓ Superior roundness to minimize stress concentrations during flaring, swaging, and orbital soldering
All our products comply with the following international standards:
